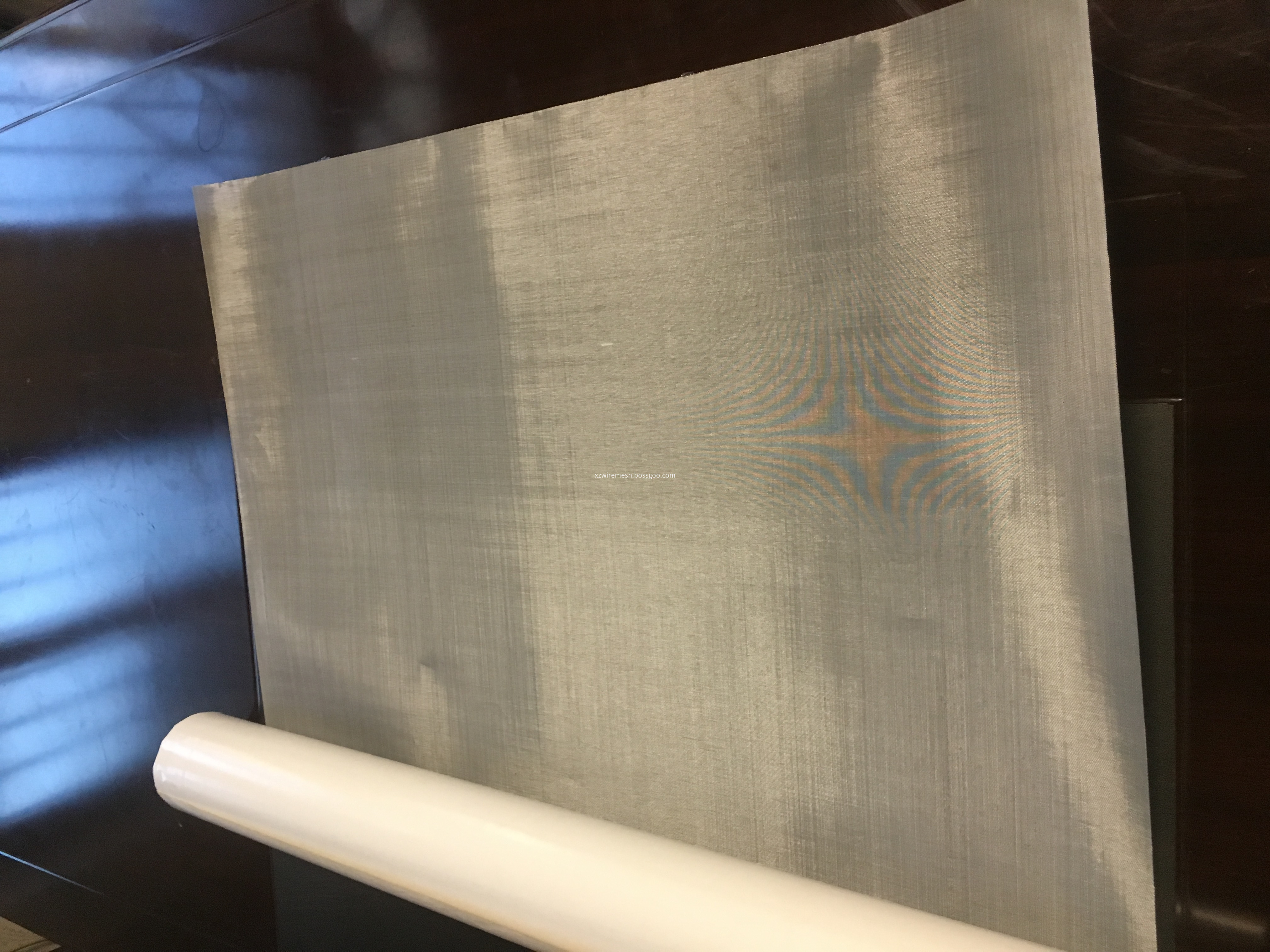

High Density Stainless Steel Wire Mesh

High Density Stainless Steel Wire Mesh

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Bag/Bags
    Delivery Time: 10 Days
    Packaging: Waterproof paper and wooden box
    Productivity: 300sqm
    Brand: Xinzheng
    Place of Origin: China
    Supply Ability: 300
    Certificate: SGS
    HS Code: 73143900
    Port: Tianjin,Qingdao,Customer Specified

Basic Info

Model No.: XZ1312

Product Description

High Density Wire Mesh

Wire Mesh Products are used as shade and screen partitions for facades, parking garages and buildings. Wire Mesh is amazingly versatile and is easily adapted to almost any application.

Weaving patterns applied for wire mesh or wire cloth can be plain weave, twill weave, Dutch plain weave or Dutch twill weave.
Plain Weave Wire Mesh and Twill Weave Wire Mesh form a square opening with equal mesh count horizontally or vertically. Hence woven wire mesh plain weave or twill weave is also called square opening wire mesh, or single layer wire mesh.
Dutch Plain Woven Wire Cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength.

Dutch Twill Woven Wire Cloth offers higher strength than regular Dutch woven wire cloth. It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wie Cloth offers finer mesh counts and lower flow than other Dutch Woven Wire Cloth.


Aping Xinzheng metal Wire mesh company's High Density Wire Mesh weave wire products are mainly used in the highly accurate filtering industry. Compared with stainless steel plain weave mesh and stainless steel twill weave mesh, it is more suitable for such applications. Holland woven mesh is quite thick, can achieve relatively high number, so stainless steel 304 wire plain dutch weave mesh belongs to wire mesh products with more excellent quality. Its performance is not achieved by the common woven mesh products and metal plate mesh products.

Material: 201, 304, 304 (L), 310, 316 (L), etc

Weaving features: Twill weave stainless steel mesh warp and weft threads interwoven from the adjacent strands - weaving in the direction of silk and shuttle.The movement of this upper and lower knitting is the movement of the shuttle.Twill weaving can be used to weave different specifications of mesh.

Features: Features: stainless steel twill weave net is an acid, alkali resistant, high temperature, tensile and wear resistance strong product, has the filtering precision, the load strength high characteristics.

USED: Twill weave stainless steel mesh is widely used in aerospace, petroleum, chemical industry, scientific research and transportation, etc, used in acid, alkali environment conditions screening and filter, oil industry as mud mesh, chemical fiber industry as screen mesh, plating industry as pickling nets.

dutch weave mesh dutch waeve way


The warp wire (D1) : all longitudinal braided lines.

The weft wire (D2) : all horizontal weaving lines.

Aperture (L1 and L2) : the distance between two meridians or two weft.

Mesh number:number of mesh holes per inch.

Thickness (T) : thickness of the net.

Size List:

mesh wire dia (MM) Material (AISI)
12 X 64 0.58/0.40 304 316
24 X 110 0.36/0.25 30.316
14 X88 0.50/0.33 30.316
30 X150 0.18/0.14 30.316
40 X200 0.14/0.11 30.316
50 X250 0.10/0.071 30.316
80 X700 0.06/0.05 30.316
165 X800 0.071/0.040 30.316
165 X1400 0.05/0.032 30.316
200 X1800 0.05/0.03 30.316
325 X2300 0.030/0.025 316L
400 X2800 0.030/0.02 316L


Dutch Weave Wire Cloth


Ss Product Detail

Ss Application

Ss Product Processing



Ss Packing

logistic

Faq
